XIR-1800:
SWIR HDR Thermal Camera System
SWIR HDR thermal camera system for metal additive and critical welding applications
Real-Time Temperature, No Guesswork: Precision Welding Starts Here.

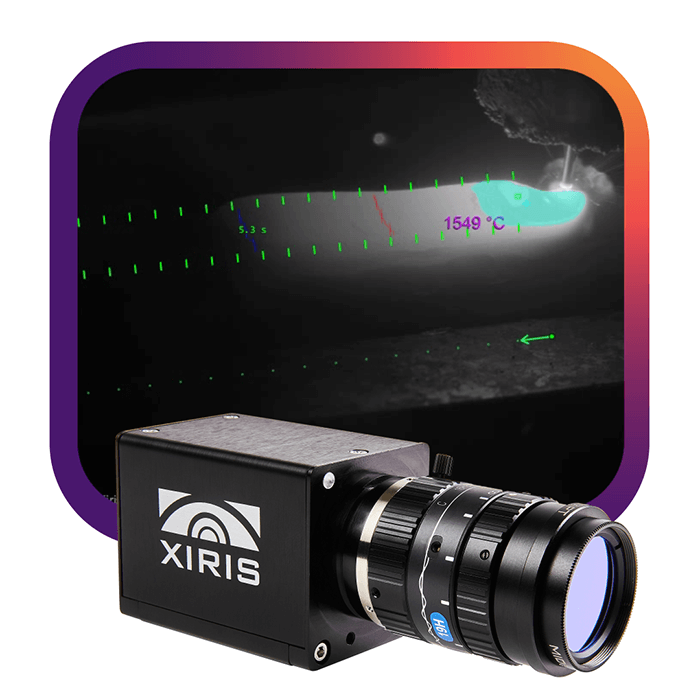

With 120+ dB HDR capability in the Short-Wave InfraRed (SWIR) spectrum, the XIR-1800 thermal camera provides detailed imaging of metal joining processes, surpassing what is visible with standard thermal or visible-light cameras.
Gain improved control of your process with real-time thermal measurements in and around the melt pool, covering key melting and transition temperatures for most metals.
Clear, enhanced imaging of the metal joining process
Using the XIR-1800 Thermal Camera and WeldStudio™, you’ll be equipped with a powerful system for improved process development, troubleshooting, and quality assurance.

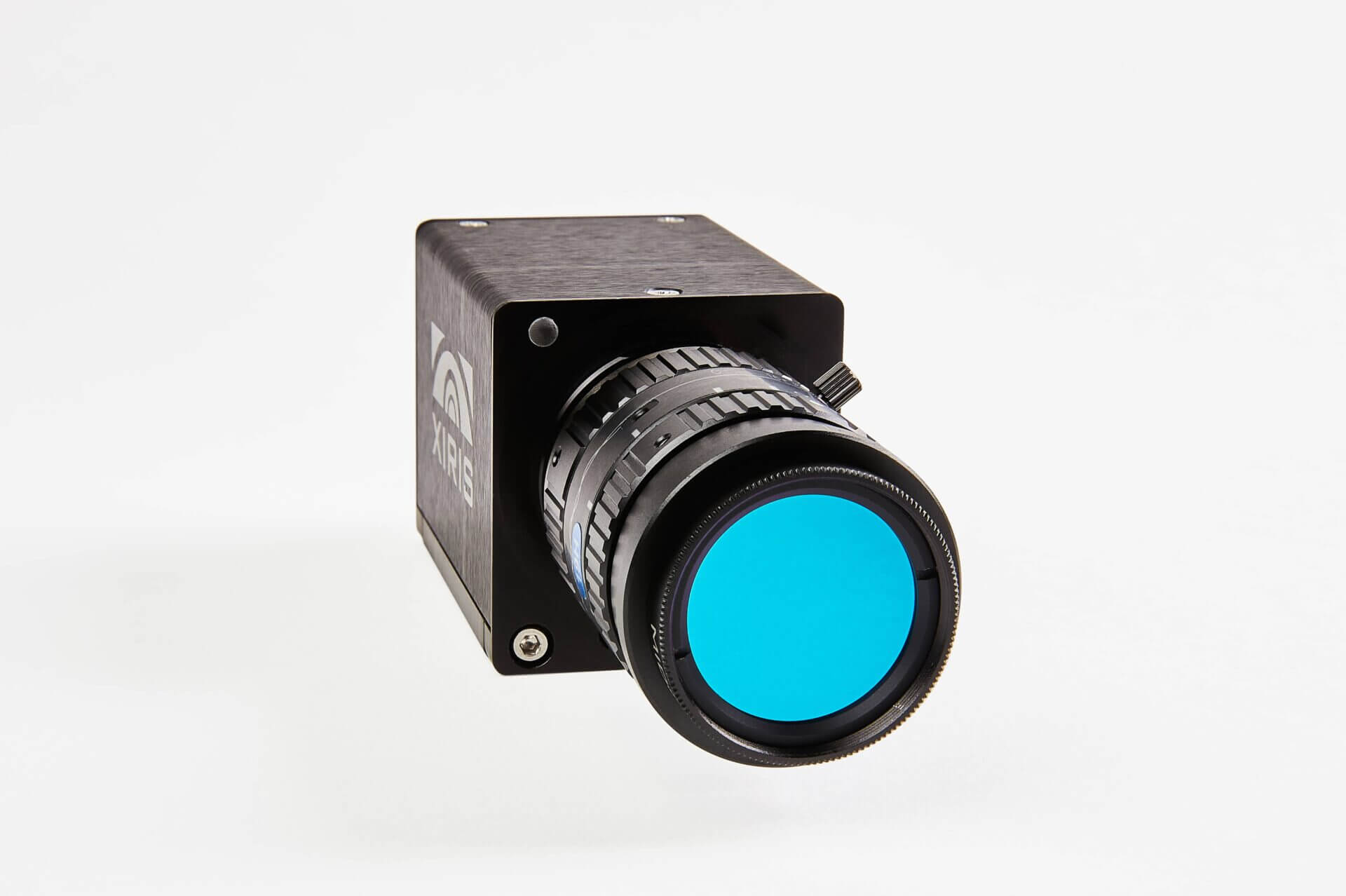

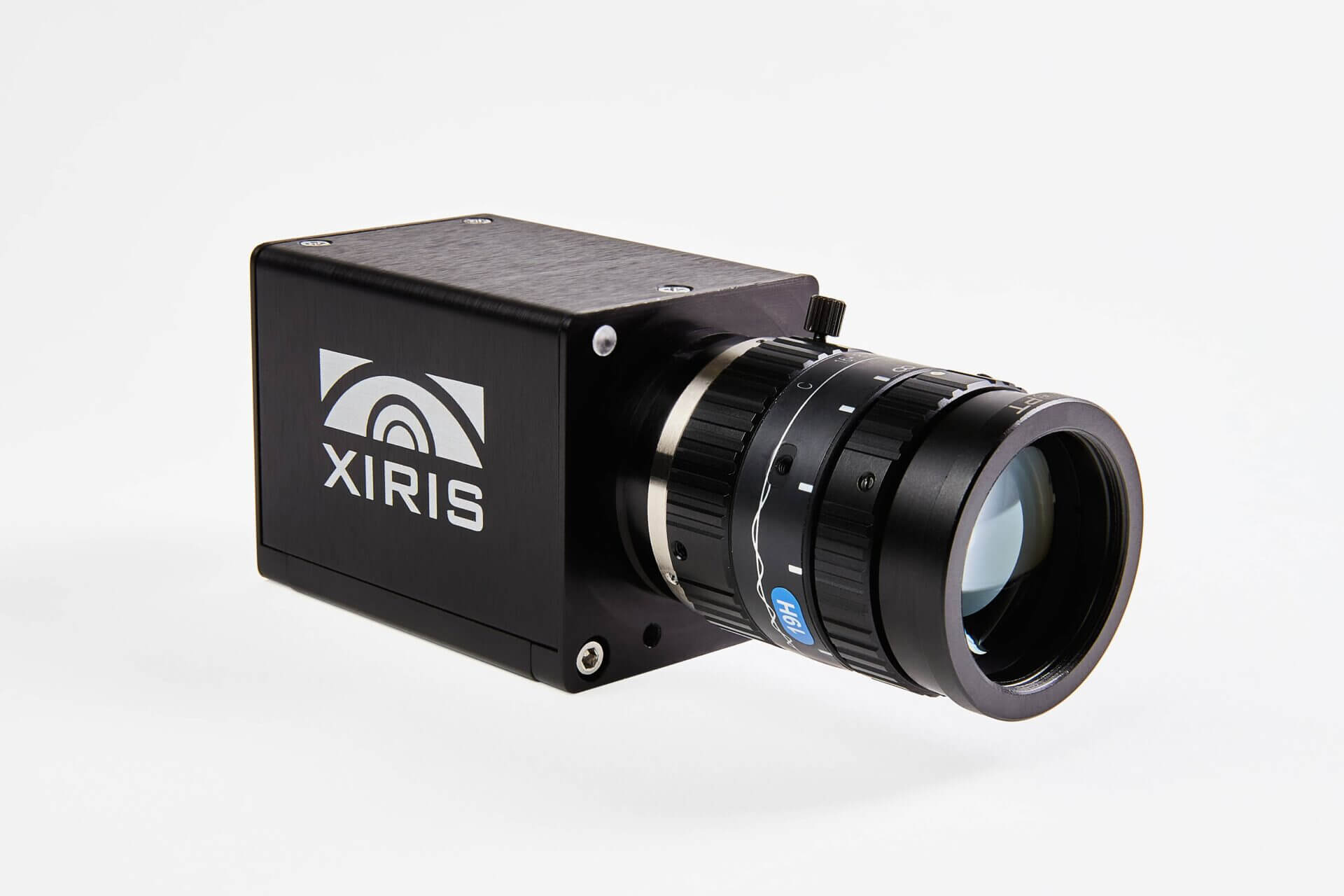

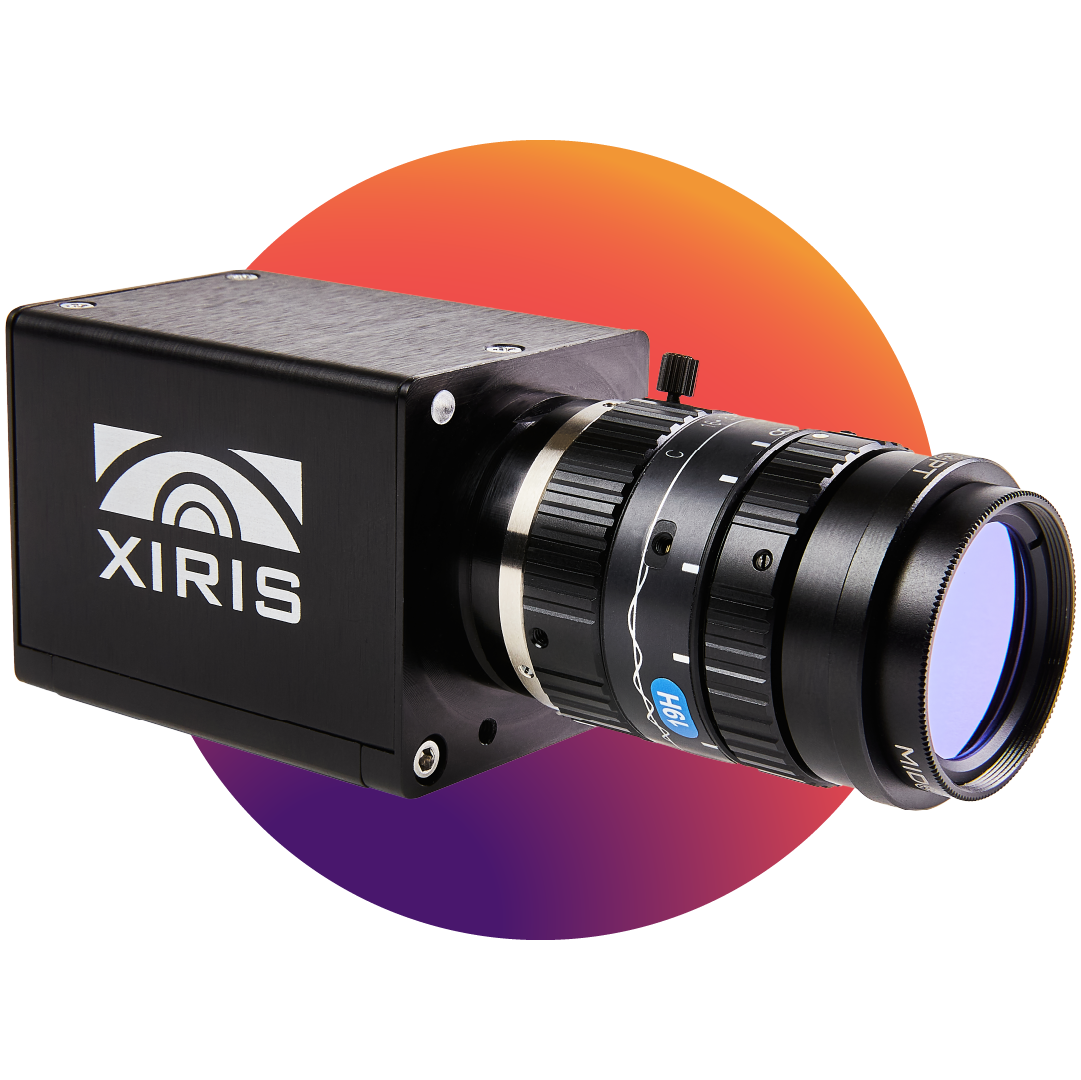

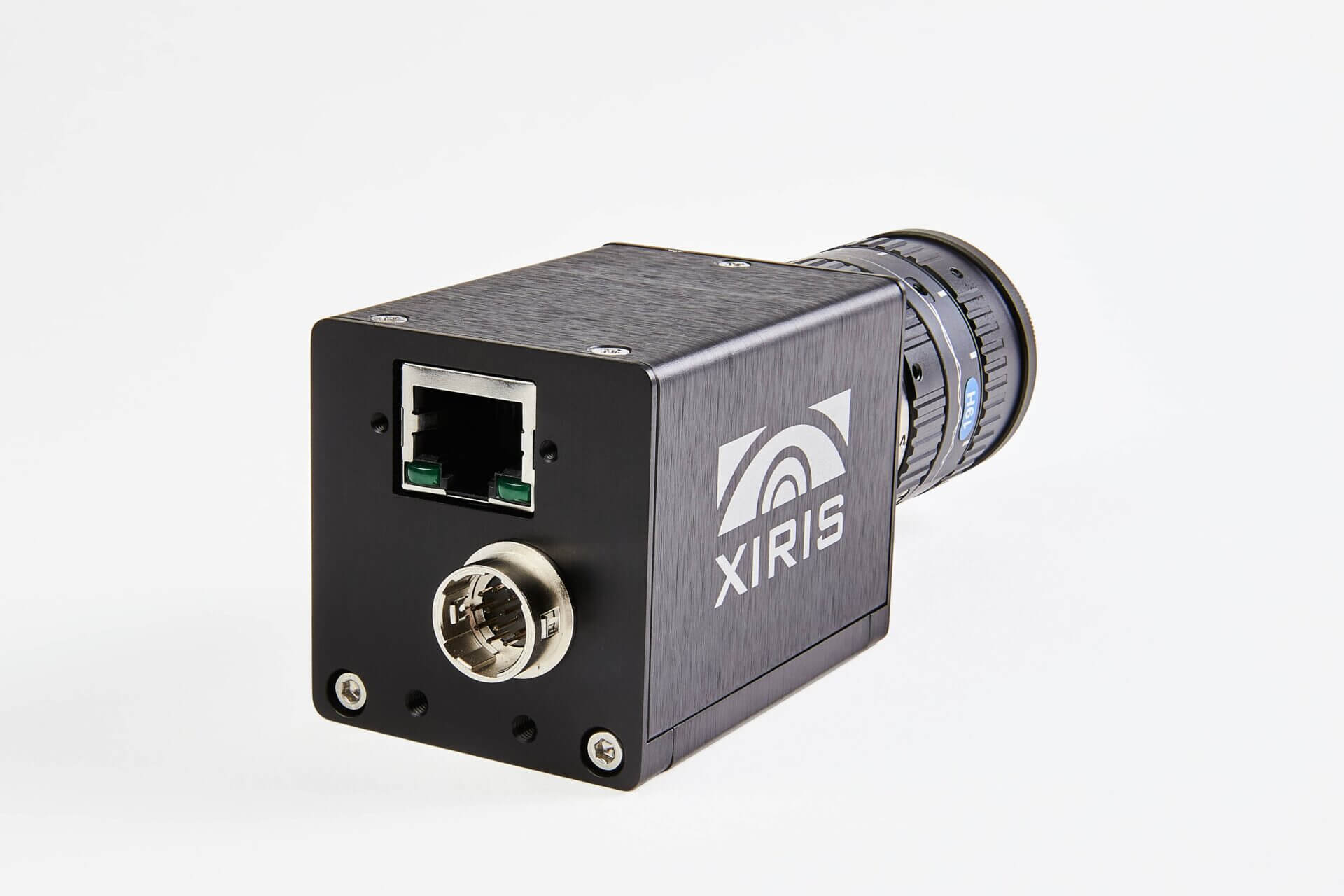

XIR-1800 Thermal Camera
The XIR-1800 offers 120+ dB HDR imaging in the Short-Wave InfraRed (SWIR) spectrum.
Now, featuring the innovative Cooling Time Tool, it enables real-time t8/5, t12/8, or other cooling time calculations.
This data empowers engineers to make informed decisions during welding or Additive Manufacturing (WAAM) processes.
Main Features of the XIR-1800 Thermal Camera
SWIR Advantage
-
Offers low sensitivity to changes in emissivity necessary for metal thermography.
- Clearly see through weld fumes better than CMOS or NIR thermal cameras.
- Capable of temperature measurements from 300 to over 6000°C.
WeldStudio Pro™ Software
-
Extract key measurements using powerful thermal, AI, and machine vision tools.
- Process and display data in real-time, with digital interfaces such as OPC-UA, Modbus-TCP, Beckhoff-ADS, and more.
- Record raw data and analyze and review offline.
Easy integration
-
Equipped with a C-Mount for easy configuration or several optics options.
- Factory calibrated to meet your specific application requirements.
- Seamless integration with other Xiris weld cameras and camera enhancements such as the WeldMic™.
Cooling time tool
-
First-ever real-time t8/5 or t12/8 cooling time calculation using a thermal camera.
- Advanced algorithms process data for precise, independent measurements.
- Enables real-time cooling rate information that predicts material properties.
- Further enhances process accuracy and empowers informed decisions to improve quality during welding or WAAM.
- Size: 40W x 43H x 66L mm without lens
- Weight: 140g without lens
- Image Sensor: 1” SWIR HDR InGaAs +120 dB
- Image Sensor: 1” SWIR HDR InGaAs +120 dB

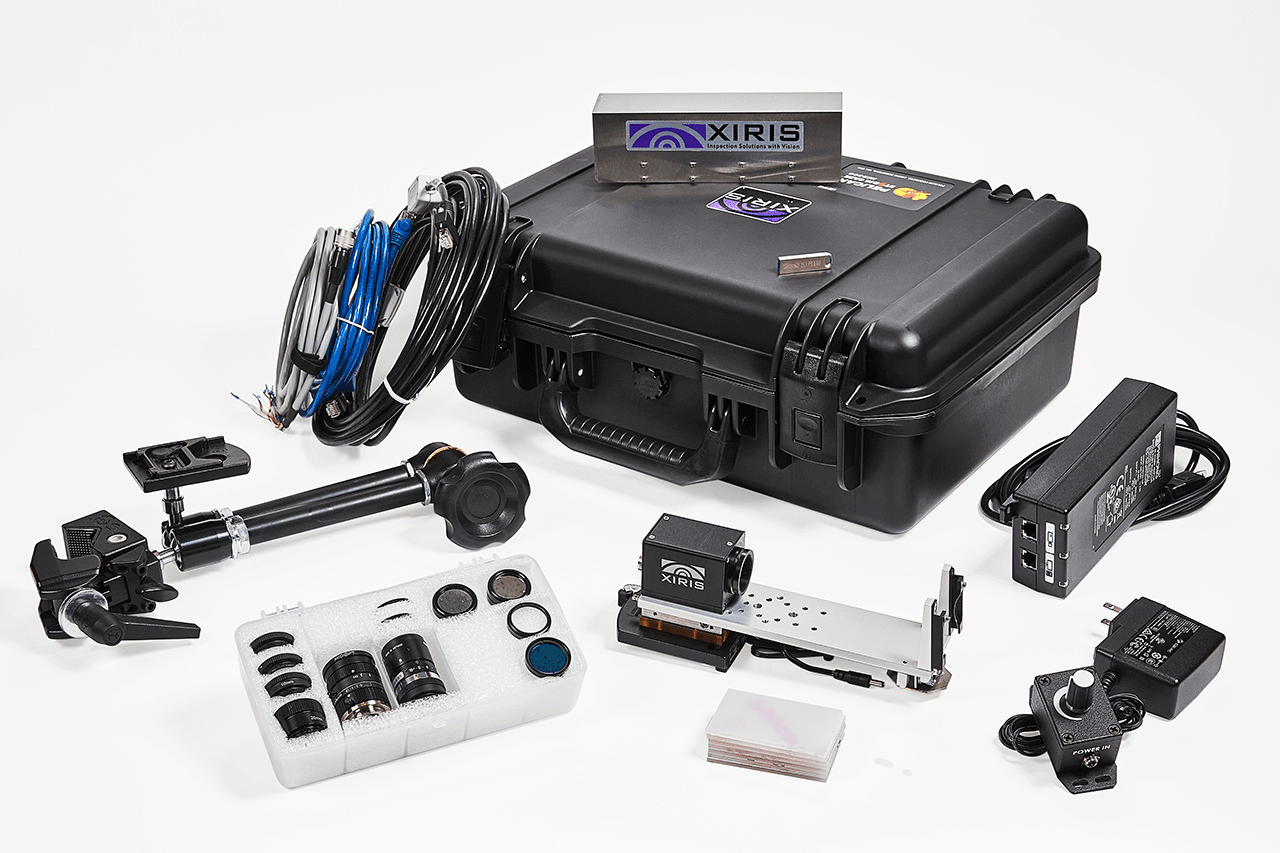

- Imaging Lenses
- External Cooling Plates
- Industrial Housings
- Welding Process Trigger Kits
- Industrial Fanless PC
- Robust High Power HMI
- Cables
The XIR-1800 thermal camera is fully compatible with Xiris WeldStudio Pro™.
Xiris WeldStudio™ software offers users a variety of powerful features, including camera control, image processing, graphical overlays, and video recording and playback.
Compatible with Microsoft Windows 10 (64-bit) and later, it includes the Xiris camera driver, graphic tools with crosshairs and targets.
Using the WeldSDK™, these software components can be customized and fully integrated into your welding automation or Additive Manufacturing system. Available for both Windows and Linux operating systems.
Software Upgrades: Xiris releases a major software update on average once a year, with minor upgrades released more frequently.
Contact Support – Monday – Friday: 0830 – 1730 Eastern Standard Time
Phone: +1.905.331.6660
Fax: +1.905.331.6661
Email: support@xiris.com
Our partners also provides support and service to our clients at many locations around the world.
Service & Training: Xiris provides its customer base with various levels of service, including new system installation and training, system upgrades and preventative maintenance programs. Many of our partners are trained to offer additional support on our systems.
System Upgrades: Many of our older systems in the field have been upgraded to allow the use of new hardware and software features including improved system reliability, system security, production reporting and updated operating systems. Do you have an older Xiris vision system? Please call your Xiris account manager to receive more information regarding the immediate benefits of a system upgrade.
Preventative Maintenance Visits: Many of our clients request a Preventative Maintenance visit in conjunction with a new system delivery or as a separate service. Our technicians will optimize the performance of the system, upgrade software as applicable, look for potential part failures and conduct training as desired by the client during the visit.
Warranty: All Xiris systems are shipped with a 15-month warranty from the day of shipment from Xiris or a 12-month warranty which commences from the first day of use (whichever comes first). Please have your Xiris system serial number available when you call so we can determine your system warranty status as well as your support plan level.
Once your Warranty expires, your Xiris Account Manager will contact you to discuss your long term support needs. Xiris offers different levels of support plan.
Let us show you the difference of the XIR-1800
