See your weld. Protect your eyes. Automate with machine vision.
See every detail of your weld with unmatched clarity. The Xiris NIR Weld Camera is designed for Open Arc and Laser welding, delivering crystal-clear images of the arc, melt pool, and background—even in the darkest conditions.
Unlike laser-based camera systems, it uses eye-safe NIR illumination, eliminating the risks of external lasers while ensuring interference-free operation in robotic welding cells.
With its modular, adaptable design, it integrates seamlessly into any welding automation setup, with advanced machine vision tools.
What Set Us Apart
Unmatched Image Quality
Achieve high resolution crystal-clear images from the arc to the background with the market’s most advanced NIR illumination, which brightens even the darkest background. Customize your images with adjustable light intensity to focus on specific features like the arc, melt pool, seam, and/or background.
Eye-Safe Illumination
The XLP-850 uses pulsed, safe NIR LEDs, avoiding the need for dangerous Class 3B or 3R external laser illumination. It does not cause interference with other laser sensors in complex setups, such as robotic welding cells.
Seamless Integration
Designed for seamless integration into manual or automated welding systems, the camera system adapts to various setups. With up to three illuminators per camera and field-replaceable LED components, it minimizes maintenance and downtime.
A clear and bold heading
Robust, safe and versatile

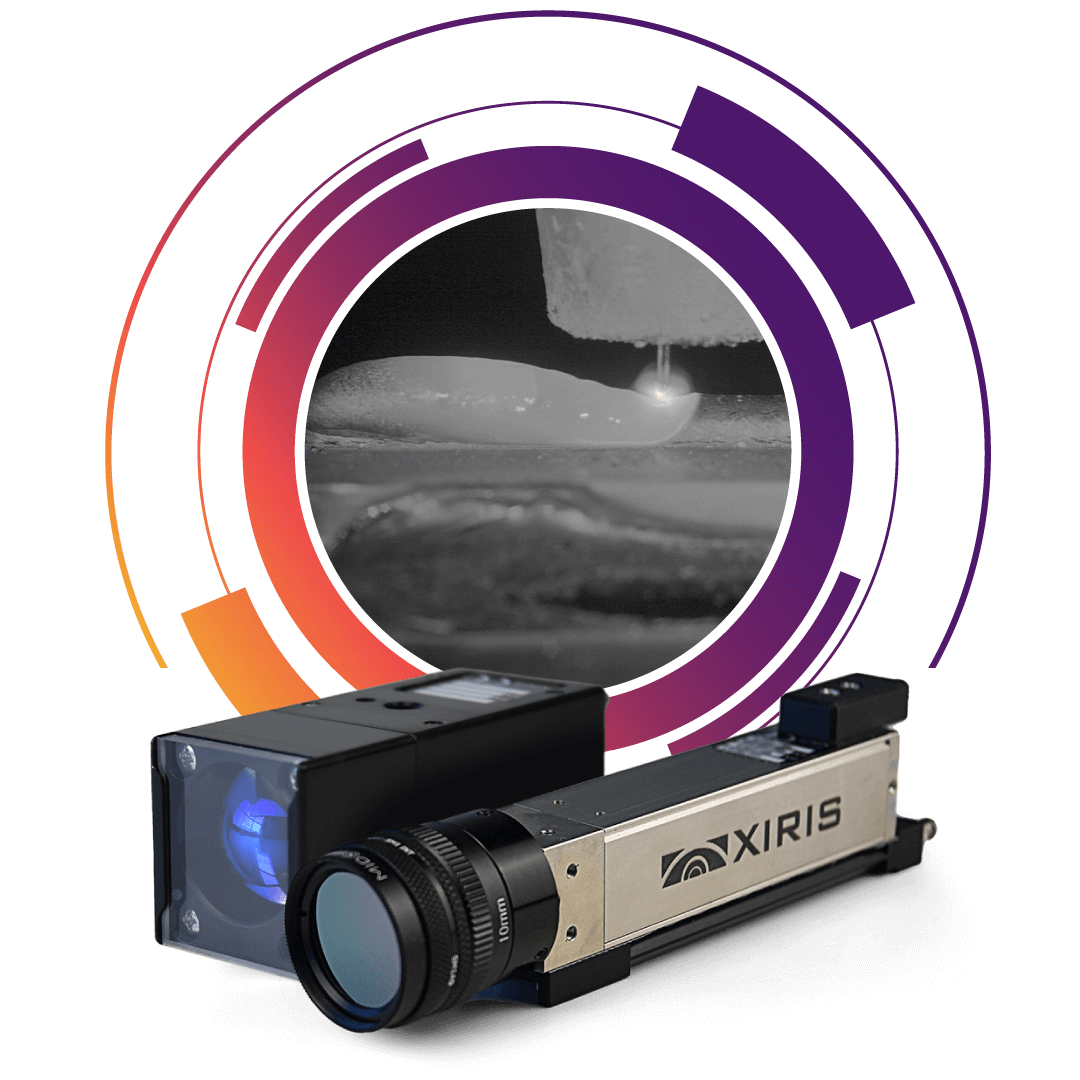

The NIR Weld Camera Measurement System is specifically design as a Robust, Safe, and Versatile imaging system for Precision Welding and includes a new XVC-750T NIR weld camera paired with the XLP-850 NIR illumination system. It’s suitable for a variety of welding and metalworking applications.
HDR Imaging and Advanced NIR Illumination for Open Arc Welding

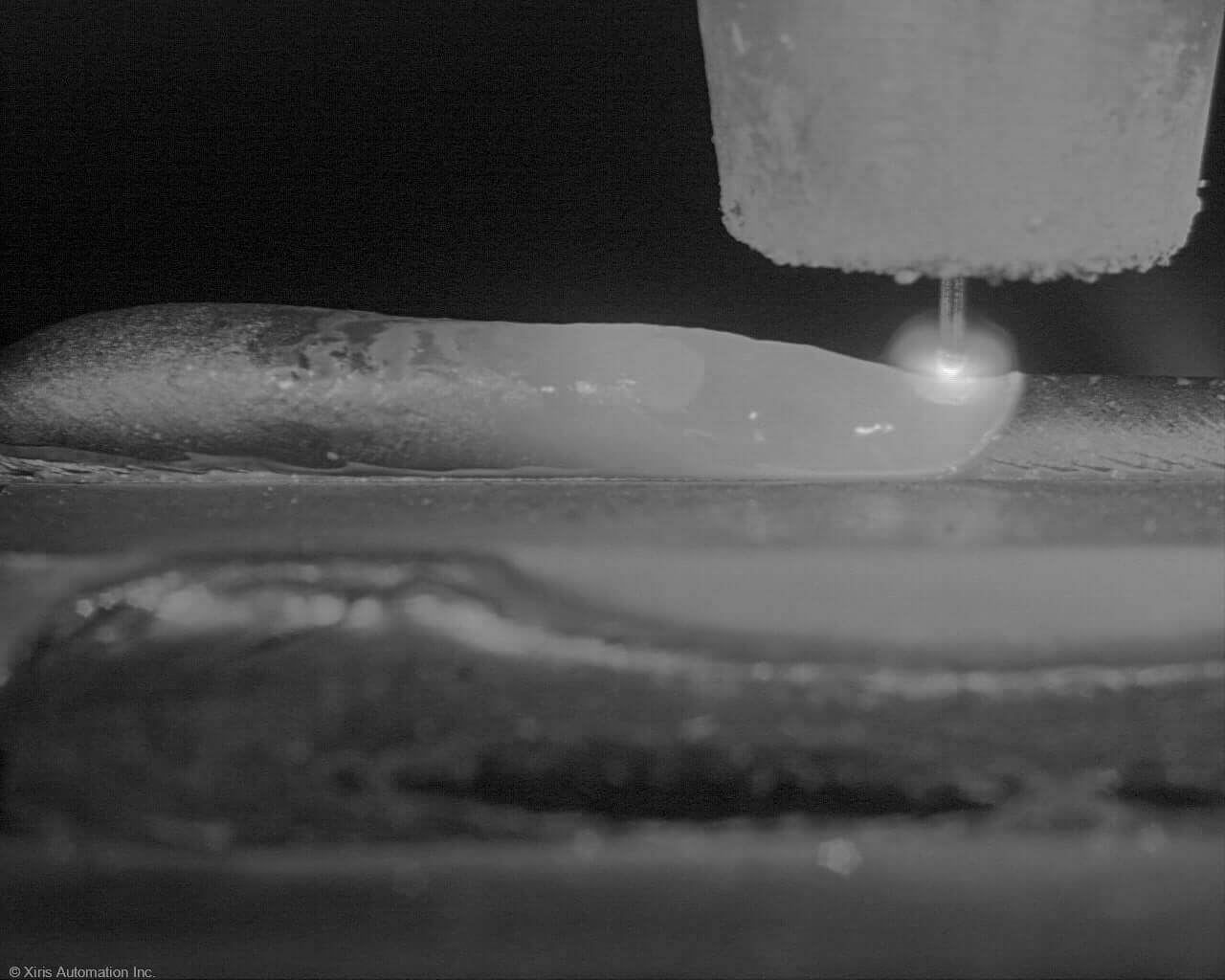

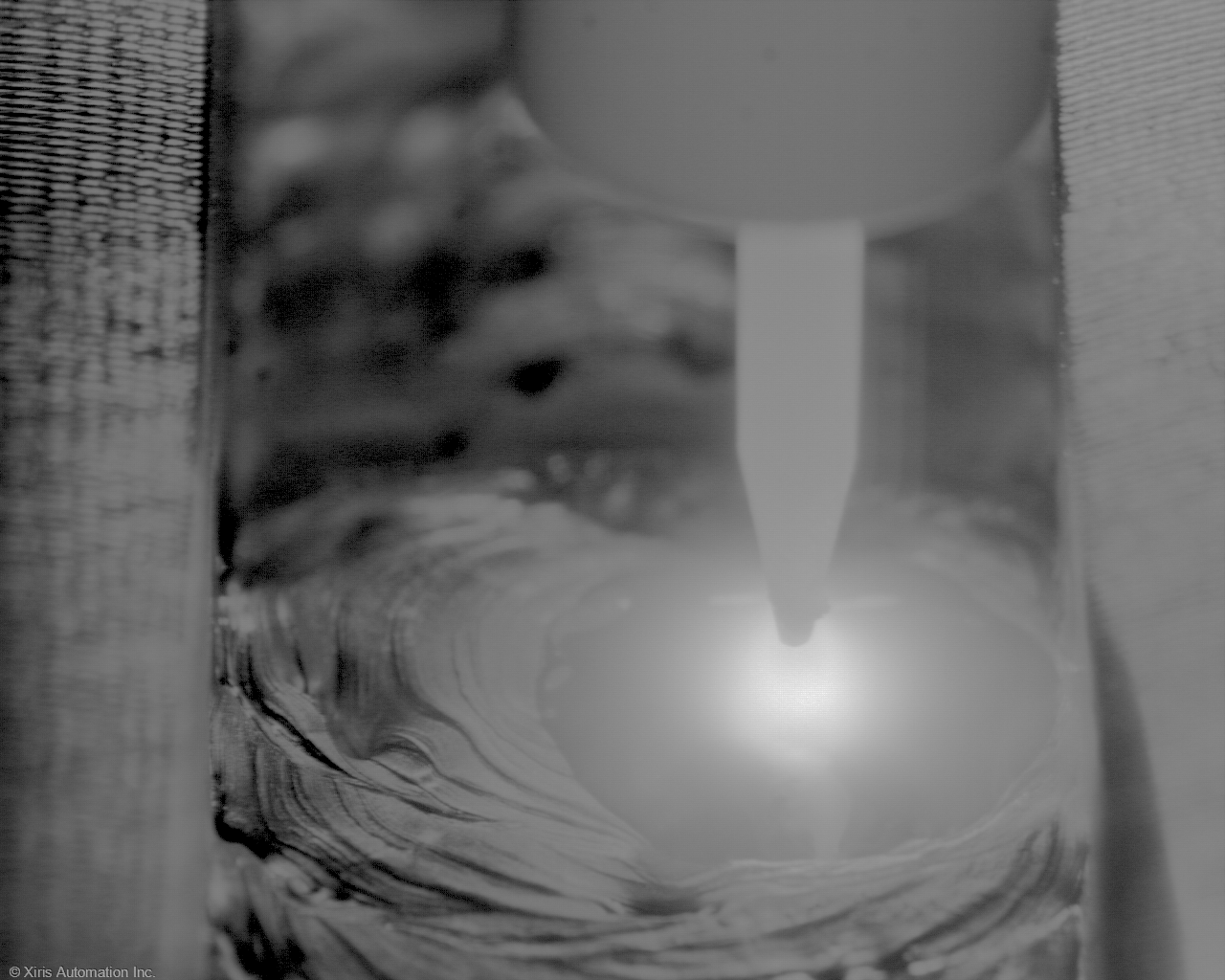

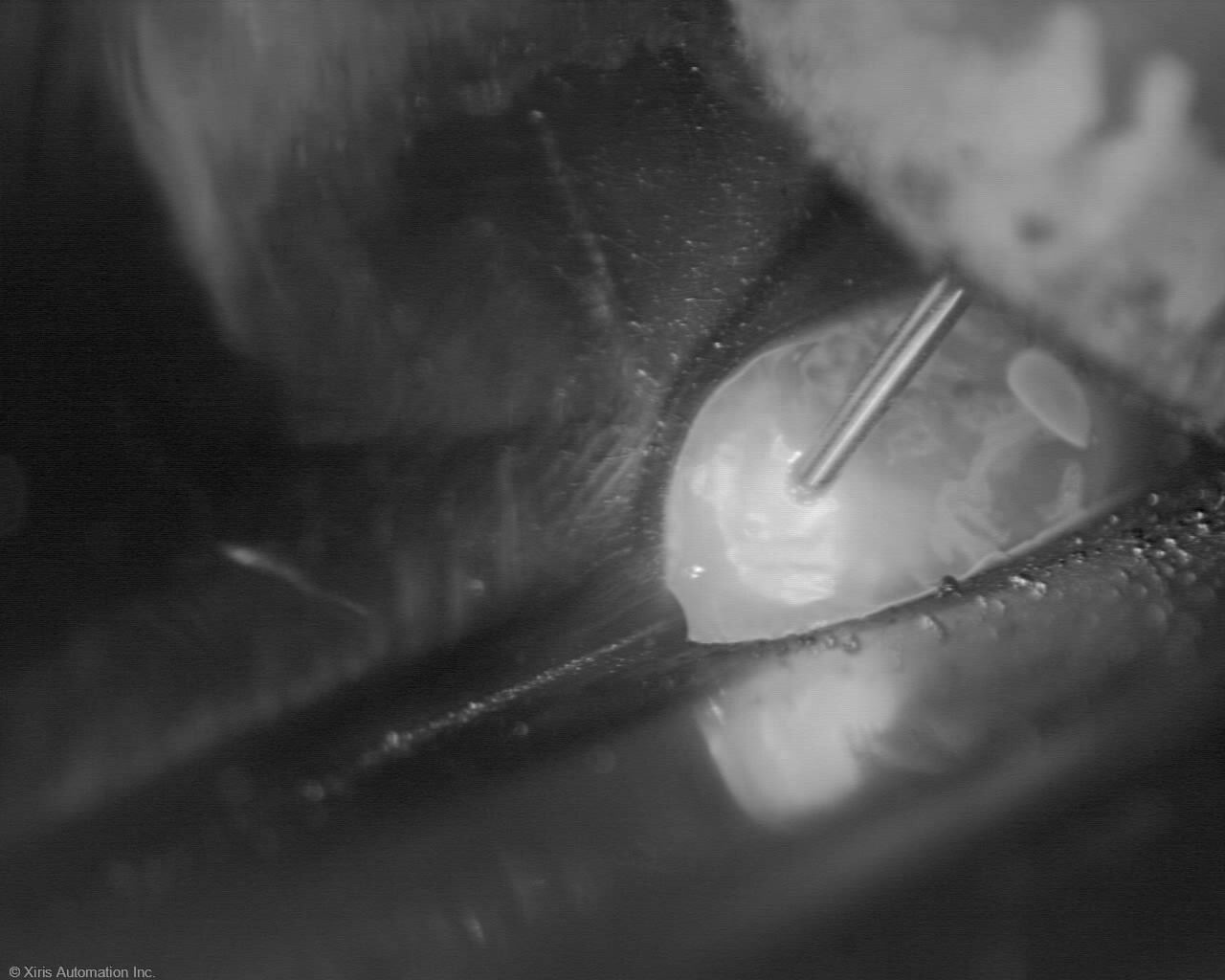

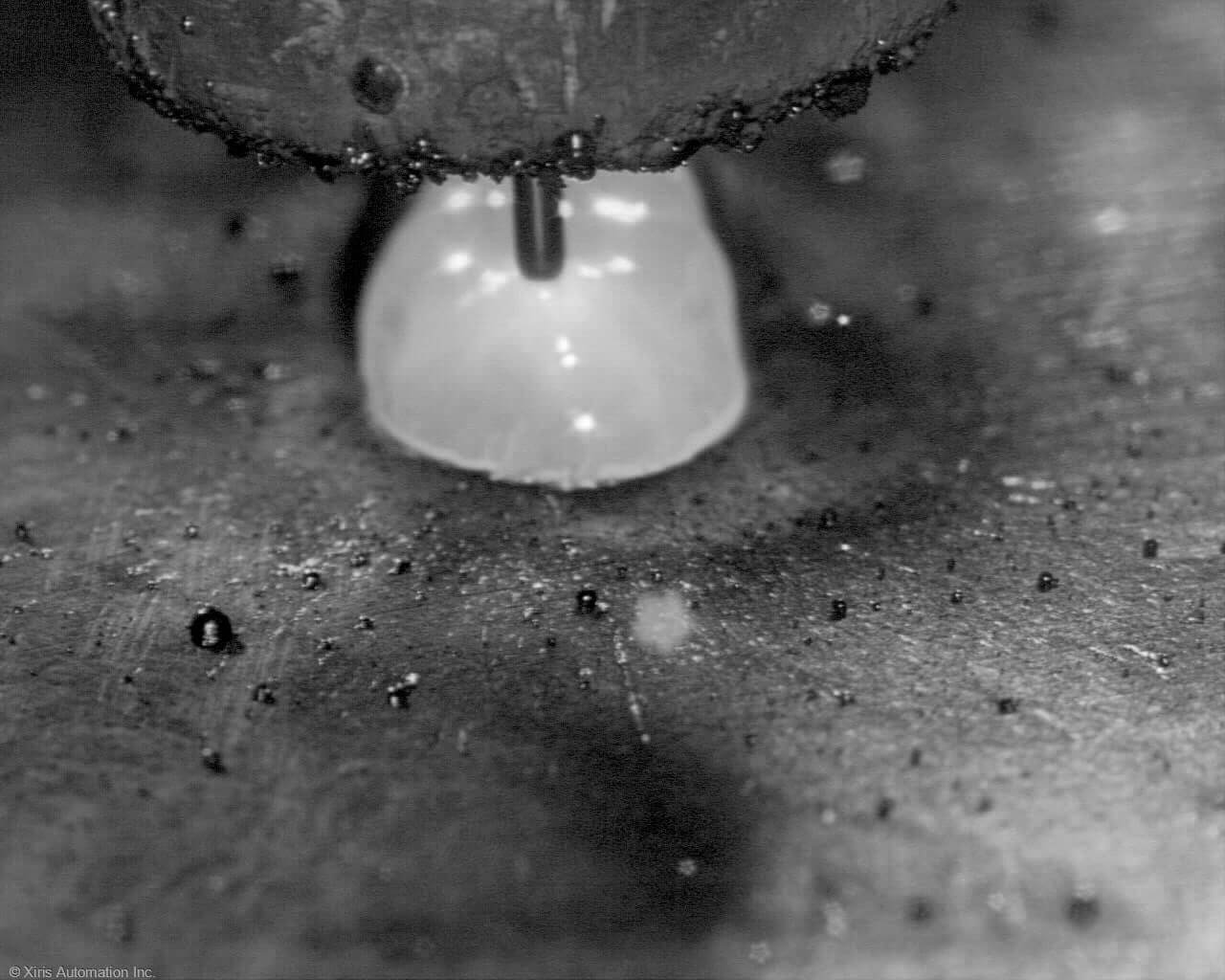

Combining Xiris HDR imaging in the Near Infrared (NIR) spectrum, with an integrated advanced NIR illumination system, this technology is designed for any open arc and laser welding application where clear detail of the wire, electrode, melt pool and the surrounding background is important.
High-Contrast Imaging for Precision Measurement and Defect Detection
The ability to adjust contrast between the melt pool and its surrounding background allows for precise geometric analysis, quality measurement and defect detection using several enhanced Machine Vision and AI tools with WeldStudio Pro.
Customizable Imaging for Welding and Metal AM Applications
As a highly advanced and versatile camera system with leading software to monitor welding, this design for integration and enhancing welding automation and monitoring to help enable perfect welding with better control over process visibility and analysis.
NIR Weld Camera System Datasheet
See every detail of your weld with unmatched clarity. The Xiris NIR Weld Camera is designed for Open Arc and Laser welding, delivering crystal-clear images of the arc, melt pool, and background—even in the darkest conditions.
- Camera Resolution: 1280 x 1024 pixels.
- Software: WeldStudio / WeldStudio Pro / SeamMonitor / WeldSDK
- 8 /12 Bit Monochrome: Up to 55 fps full resolution (Max. 60fps with Illumination)
- Controls via WeldStudio: Exposure Control, Illumination Control, Image Processing
- XVC-750T Power: POE only, M12 X-Coded connector, Up to 100m cable length
- Environmental: XVC-750T IP 54, XLP-850 IP 60
- XLP-850 Power Adapter: Input: 110-240V AC, Output: 30V DC, Supports up to Qty 3, XLP-850
- Max Operating Temperature: XVC750T: up to 80°C with Cooling plate, +260°C with Housing, XLP-850 up to 80°C
- XLP-850 Power Cable: 5, 10, 20 meters
- XLP-850 Cables: Industrial Cables, M8 Connectors
- XVC-750T Welding Trigger: Use Optional Camera Trigger Kit
- Compliance: CE, FCC, RoHS
